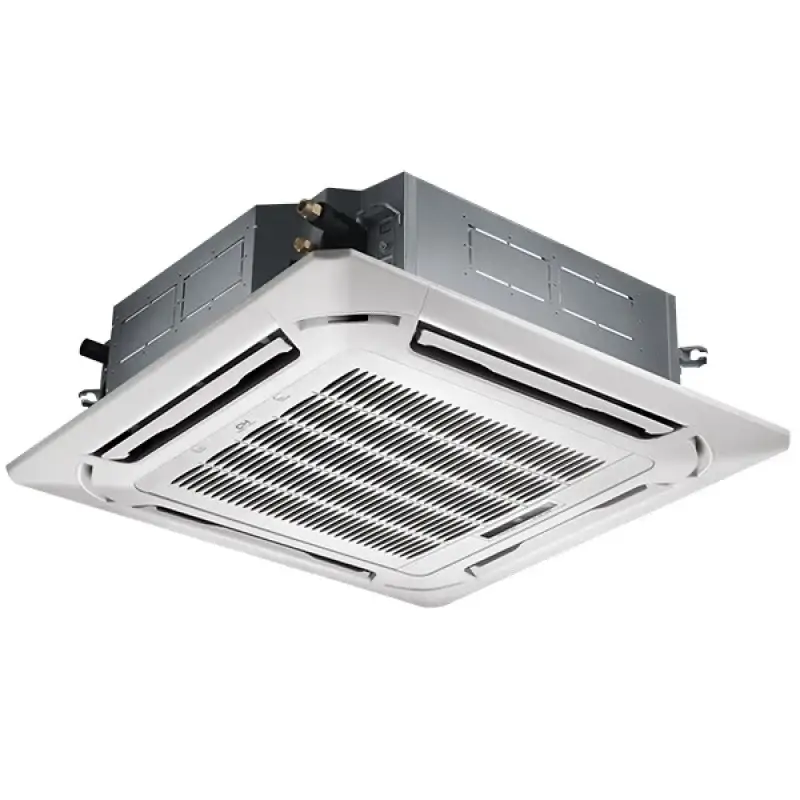

Cooper & Hunter SPH 12,000 BTU Indoor Ceiling Cassette, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump
Cooper & Hunter SPH 12,000 BTU Indoor Ceiling Cassette, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump
Cooper&Hunter Multi-Zone 12,000 BTU 230V indoor Four-Way Ceiling Cassette Air Conditioning Unit for Heat Pump, Mini Split Inverter System Up To 22.7 SEER2 with Optional Installation Kit CH-12MSPHCT-230VI
Summary
The option to choose both, aesthetics and functionality is brought by Cooper&Hunter’s Ceiling Cassette mini split series. Ceiling Cassettes offer a convenient solution for offices and businesses, as they can easily fit into a standard ceiling grid, but they can be used for almost any application, as long as enough space exists above the ceiling itself. Ceiling Cassettes provide omnidirectional airflow and user-friendly Remote Control operation.
Ceiling Cassettes are designed to be controlled by our optional wall thermostat, the included remote control.
This series of mini splits is available in 9K, 12K, 18K, 24K (36K-48K in Single Zone Light Commercial Applications.) Btu/h models and can be paired with Regular or Hyper Heat Pump Outdoor Units. These systems can heat and cool your home or office effectively down to -13°F for Standard units and even down to -22°F for Hyper units.
Important
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.
What's Included
- Indoor Unit CH-12MSPHCT-230VI (12,000 BTU Sophia Series Indoor Four-Way Ceiling Cassette)
- Optional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.) MUST BE SELECTED ABOVE.
- Wireless Remote Controls
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Compatible Standard Outdoor Units
| Capacity | BTU | SKU |
| Dual (2) Zone: | 18,000 BTU | CH-18MES-230VO |
| Dual/Tri (2 or 3) Zone: | 28,000 BTU | CH-28MES-230VO |
| Dual/Tri/Quad (2, 3 or 4) Zone: | 36,000 BTU | CH-36MES-230VO |
| Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone: | 48,000 BTU | CH-48MES-230VO |
| Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone: | 55,000 BTU | CH-55MES-230VO |
Compatible Hyper Outdoor Units
| Capacity | BTU | SKU |
| Dual (2) Zone: | 19,000 BTU | CH-HPR19M-230VO |
| Dual/Tri (2 or 3) Zone: | 28,000 BTU | CH-HPR28M-230VO |
| Dual/Tri/Quad (2, 3 or 4) Zone: | 36,000 BTU | CH-HPR36M-230VO |
| Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone: | 48,000 BTU | CH-HPR48M-230VO |
| Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone: | 55,000 BTU | CH-HPR55M-230VO |
Sizing and Compatability:
Combination Chart
The capacity and number of systems can vary for each outdoor unit. Consult the combination chart for potential loading configurations. Ensure the total capacity of all connected indoor units aligns with the minimum and maximum loading range of the selected outdoor unit. It is not mandatory to utilize all circuits on an outdoor unit; some circuits may remain sealed without an attached indoor unit.
Warranty
- 7 year compressor limited warranty
- 5 year parts limited warranty (must be installed by a licensed HVAC technician)
- 1 year remote control
Technical Information
Model Number: CH-12MSPHCT-230VI
| Specification | Details |
|---|---|
| Power Supply | 208~230V, 60Hz, 1Ph |
| Rated Capacity | 12,000 BTU/h |
| EER2 | 14 |
| SEER 2 | 21.5 |
| Refrigerant Type | R410A |
| Suitable Area | 400-550 SQ FT |
| Indoor Air Flow (Turbo/Hi/Mi/Lo) | 370.8/335.29/282.35/241.18 |
| Sound Level (Hi/Lo) | 40/36/32.5 |
| Dimensions | 22.44x22.44x10.24 |
| Net/Gross Weight | 35.27/41.01 |
| Cooling | 60 ~ 90°F |
| Heating | 32 ~ 86°F |
| Liquid Side/Gas Side | 1/4" - 1/2'' |
Certifications
Performance Data/Features
- Louver Memory
- Automatic Operation
- Self-Diagnosis
- Auto Swing
- Goldfin Coating
- Inverter Technology
- Multiple Fan Speeds
- Sleep Mode
- Timer
- Auto-restart Function
- Turbo Mode
- Follow Me Mode
- Remote Control included
- Intelligent Pre-Heating
