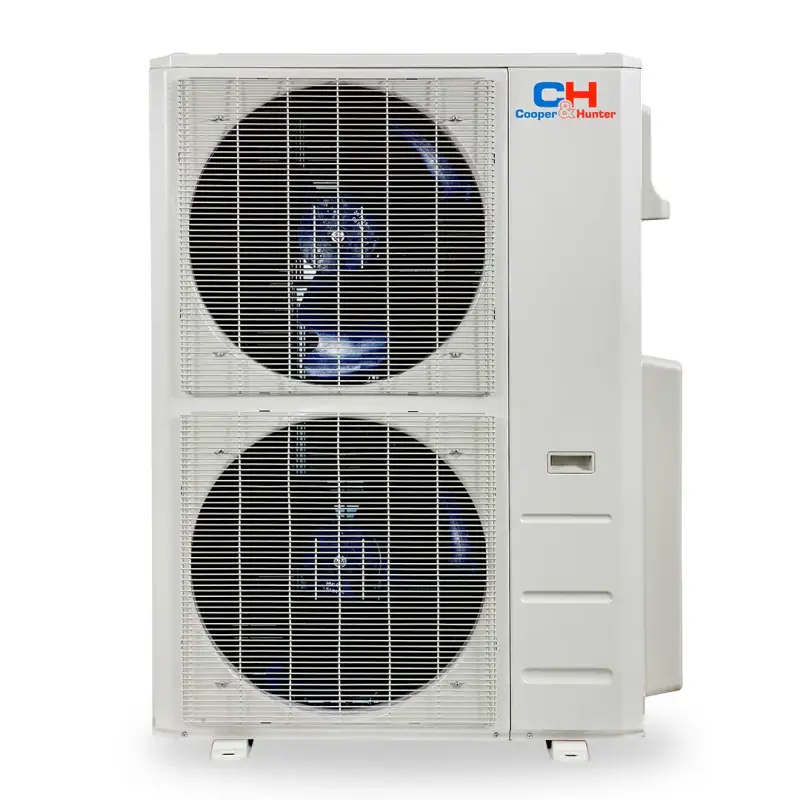

Cooper & Hunter MES 60,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump



Summary

The option to choose both, aesthetics and functionality is brought by Cooper&Hunter’s The ES condenser series features Energy Star Certified units in 18K, 28K, 36k, 48K, and 60k Btu/h options. Multi zone models are available to be paired with Wall Mounts, Ceiling Cassettes, Slim Ducts, Universal Floor/Ceiling, Mini Floor Consoles, and Air Handler Units to reach up to 24 SEER. This standard unit can heat and cool your home or office effectively down to -13°F.



Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. This is an Outdoor Unit ONLY. Please ensure that you have made a correct selection for an indoor unit as well in our Indoor Units section. Units are pre-charged with refrigerant up to 100FT.



What's Included

• 60,000 BTU 230V Multi-Zone Outdoor Condenser Air Conditioner (CH-R60MES-230VO)
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Zone Combinations



*Note: Units marked in RED can be either a Multi-position Air Handler, or other Indoor unit TYPE

2 Zone
CH-R60MES-230VO
6K	18K
6K	24K
6K	30K
6K	36K
9K	18K
9K	24K
9K	30K
9K	36K
12K	12K
12K	18K
12K	24K
12K	30K
12K	36K
18K	18K
18K	24K
18K	30K
18K	36K
24K	24K
24K	30K
24K	36K

3 Zone
CH-R60MES-230VO
6K	6K	18K
6K	6K	24K
6K	6K	30K
6K	6K	36K
6K	9K	9K
6K	9K	12K
6K	9K	18K
6K	9K	24K
6K	9K	30K
6K	9K	36K
6K	12K	12K
6K	12K	18K
6K	12K	24K
6K	12K	30K
6K	12K	36K
6K	18K	18K
6K	18K	24K
6K	18K	30K
6K	18K	36K
9K	9K	9K
9K	9K	12K
9K	9K	18K
9K	9K	24K
9K	9K	30K
9K	9K	36K
9K	12K	12K
9K	12K	18K
9K	12K	24K
9K	12K	30K
9K	12K	36K
9K	18K	18K
9K	18K	24K
9K	18K	30K
9K	18K	36K
12K	12K	12K
12K	12K	18K
12K	12K	24K
12K	12K	30K
12K	12K	36K
12K	18K	18K
12K	18K	24K
12K	18K	30K
12K	18K	36K
18K	18K	18K

4 Zone
CH-R60MES-230VO
6K	6K	6K	6K
6K	6K	6K	9K
6K	6K	6K	12K
6K	6K	6K	18K
6K	6K	6K	24K
6K	6K	9K	9K
6K	6K	9K	12K
6K	6K	9K	18K
6K	6K	9K	24K
6K	6K	12K	12K
6K	6K	12K	18K
6K	6K	12K	24K
6K	6K	18K	18K
6K	6K	18K	24K
6K	9K	9K	9K
6K	9K	9K	12K
6K	9K	9K	18K
6K	9K	9K	24K
6K	9K	12K	12K
6K	9K	12K	18K
6K	9K	12K	24K
6K	9K	18K	18K
6K	9K	18K	24K
6K	12K	12K	12K
6K	12K	12K	18K
6K	12K	12K	24K
6K	12K	18K	18K
6K	12K	18K	24K
6K	18K	18K	18K
6K	18K	18K	24K
9K	9K	9K	9K
9K	9K	9K	12K
9K	9K	9K	18K
9K	9K	9K	24K
9K	9K	12K	12K
9K	9K	12K	18K
9K	9K	12K	24K
9K	9K	18K	18K
9K	9K	18K	24K
9K	12K	12K	12K
9K	12K	12K	18K
9K	12K	12K	24K
9K	12K	18K	18K
9K	12K	18K	24K
9K	18K	18K	18K
12K	12K	12K	12K
12K	12K	12K	18K
12K	12K	12K	24K
12K	12K	18K	18K
12K	12K	18K	24K
12K	18K	18K	18K

5 Zone
CH-R60MES-230VO
6K	6K	6K	6K	6K
6K	6K	6K	6K	9K
6K	6K	6K	6K	12K
6K	6K	6K	6K	18K
6K	6K	6K	6K	24K
6K	6K	6K	9K	9K
6K	6K	6K	9K	12K
6K	6K	6K	9K	18K
6K	6K	6K	9K	24K
6K	6K	6K	12K	12K
6K	6K	6K	12K	18K
6K	6K	6K	12K	24K
6K	6K	6K	18K	18K
6K	6K	6K	18K	24K
6K	6K	9K	9K	9K
6K	6K	9K	9K	12K
6K	6K	9K	9K	18K
6K	6K	9K	9K	24K
6K	6K	9K	12K	12K
6K	6K	9K	12K	18K
6K	6K	9K	12K	24K
6K	6K	9K	18K	18K
6K	6K	9K	18K	24K
6K	6K	12K	12K	12K
6K	6K	12K	12K	18K
6K	6K	12K	12K	24K
6K	6K	12K	18K	18K
6K	6K	12K	18K	24K
6K	6K	18K	18K	18K
6K	6K	18K	18K	24K
6K	9K	9K	9K	9K
6K	9K	9K	9K	12K
6K	9K	9K	9K	18K
6K	9K	9K	9K	24K
6K	9K	9K	12K	12K
6K	9K	9K	12K	18K
6K	9K	9K	12K	24K
6K	9K	9K	18K	18K
6K	9K	9K	18K	24K
6K	9K	12K	12K	12K
6K	9K	12K	12K	18K
6K	9K	12K	12K	24K
6K	9K	12K	18K	18K
6K	12K	12K	12K	12K
6K	12K	12K	12K	18K
6K	12K	12K	12K	24K
6K	12K	12K	18K	18K
6K	12K	18K	18K	18K
9K	9K	9K	9K	9K
9K	9K	9K	9K	12K
9K	9K	9K	9K	18K
9K	9K	9K	9K	24K
9K	9K	9K	12K	12K
9K	9K	9K	12K	18K
9K	9K	9K	12K	24K
9K	9K	9K	18K	18K
9K	9K	9K	18K	24K
9K	9K	12K	12K	12K
9K	9K	12K	12K	18K
9K	9K	12K	12K	24K
9K	9K	12K	18K	18K
9K	9K	12K	18K	24K
9K	9K	18K	18K	18K
9K	12K	12K	12K	12K
9K	12K	12K	12K	18K
9K	12K	12K	12K	24K
9K	12K	12K	18K	18K
12K	12K	12K	12K	12K
12K	12K	12K	12K	18K
12K	12K	12K	12K	24K
12K	12K	12K	18K	18K

6 Zone
CH-R60MES-230VO
6K	6K	6K	6K	6K	6K
6K	6K	6K	6K	6K	9K
6K	6K	6K	6K	6K	12K
6K	6K	6K	6K	6K	18K
6K	6K	6K	6K	6K	24K
6K	6K	6K	6K	9K	9K
6K	6K	6K	6K	9K	12K
6K	6K	6K	6K	9K	18K
6K	6K	6K	6K	9K	24K
6K	6K	6K	6K	12K	12K
6K	6K	6K	6K	12K	18K
6K	6K	6K	6K	12K	24K
6K	6K	6K	9K	9K	9K
6K	6K	6K	9K	9K	12K
6K	6K	6K	9K	9K	18K
6K	6K	6K	9K	9K	24K
6K	6K	6K	9K	12K	12K
6K	6K	6K	9K	12K	18K
6K	6K	6K	9K	12K	24K
6K	6K	6K	12K	12K	12K
6K	6K	6K	12K	12K	18K
6K	6K	6K	12K	12K	24K
6K	6K	9K	9K	9K	9K
6K	6K	9K	9K	9K	12K
6K	6K	9K	9K	9K	18K
6K	6K	9K	9K	9K	24K
6K	6K	9K	9K	12K	12K
6K	6K	9K	9K	12K	18K
6K	6K	9K	9K	12K	24K
6K	6K	9K	12K	12K	12K
6K	6K	9K	12K	12K	18K
6K	6K	9K	12K	12K	24K
6K	6K	12K	12K	12K	12K
6K	6K	12K	12K	12K	18K
6K	6K	12K	12K	12K	24K
6K	9K	9K	9K	9K	9K
6K	9K	9K	9K	9K	12K
6K	9K	9K	9K	9K	18K
6K	9K	9K	9K	9K	24K
6K	9K	9K	9K	12K	12K
6K	9K	9K	9K	12K	18K
6K	9K	9K	9K	12K	24K
6K	9K	9K	9K	18K	18K
6K	9K	9K	12K	12K	12K
6K	9K	9K	12K	12K	18K
6K	9K	9K	12K	12K	24K
6K	9K	12K	12K	12K	12K
6K	9K	12K	12K	12K	18K
6K	12K	12K	12K	12K	12K
6K	12K	12K	12K	12K	18K
9K	9K	9K	9K	9K	9K
9K	9K	9K	9K	9K	12K
9K	9K	9K	9K	9K	18K
9K	9K	9K	9K	9K	24K
9K	9K	9K	9K	12K	12K
9K	9K	9K	9K	12K	18K
9K	9K	9K	9K	12K	24K
9K	9K	9K	12K	12K	12K
9K	9K	9K	12K	12K	18K
9K	9K	12K	12K	12K	12K
9K	9K	12K	12K	12K	18K
9K	12K	12K	12K	12K	12K
12K	12K	12K	12K	12K	12K

6,000 BTU Compatible Units

Wall Mounts	SKU	Dimensions(WxDxH)
Astoria (Up to 27.4 SEER2)	CH-RH06MASTWM-230VI	33.74x9.09x11.81
Astoria Pro (Up to 27.4 SEER2)	CH-PRO06MASTWM-230VI	33.74x9.09x11.81
Olivia (Up to 26 SEER2)	CH-R06MOLVWM-230VI	28.70x7.87x11.50
Ceiling Cassettes	SKU	Dimensions(WxDxH)
One-Way Cassette Dip Switch (Up to 24 SEER2)	CH-RSH06-12MCT1W	50.31x13.19x8.98
Other Units	SKU	Dimensions(WxDxH)
Slim Duct Dip Switch (Up to 21.4 SEER2)	CH-RS06-12MDT- MS	27.56 x 19.92 x 7.87

9,000 BTU Compatible Units

Wall Mounts	SKU	Dimensions(WxDxH)
Astoria (Up to 27.4 SEER2)	CH-RH09MASTWM-230VI	33.74x9.09x11.81
Astoria Pro (Up to 27.4 SEER2)	CH-PRO09MASTWM-230VI	33.74x9.09x11.81
Olivia (Up to 26 SEER2)	CH-R09MOLVWM-230VI	31.57x7.87x11.61
Olivia Midnight (Black Style, Up to 26 SEER2)	CH-RB09MOLVWM-230VI	31.57x7.87x11.61
Ceiling Cassettes	SKU	Dimensions(WxDxH)
One-Way Cassette Dip Switch (Up to 24 SEER2)	CH-RSH06-12MCT1W	50.31x13.19x8.98
Ceiling Cassette Pro (9K-12K dip switch, ref sensor & humidity sensor) (Up To 22.6 SEER2)	CH-RSH09-12MCT	22.44x22.44x9.65
Ceiling Cassette (without dip switch, without ref sensor & with humidity sensor)  (Up To 22.6 SEER2)	CH-RH09MCT	22.44x22.44x9.65
Other Units	SKU	Dimensions(WxDxH)
Slim Duct/Concealed Duct Dip Switch (Up To 21.4 SEER2)	CH-RS06-12MDT- MS	27.56 x 19.92 x 7.87
Mini Floor Console (Up To 27.2 SEER2)	CH-RSH09MMC	31.26x7.87x24.45

12,000 BTU Compatible Units

Wall Mounts	SKU	Dimensions(WxDxH)
Astoria (Up to 27.4 SEER2)	CH-RH12MASTWM-230VI	33.74x9.09x11.81
Astoria Pro (Up to 27.4 SEER2)	CH-PRO12MASTWM-230VI	33.74x9.09x11.81
Olivia (Up to 26 SEER2)	CH-R12MOLVWM-230V	31.57x7.87x11.61
Olivia Midnight (Black Style, Up to 26 SEER2)	CH-RB12MOLVWM-230VI	31.57x7.87x11.61
Ceiling Cassettes	SKU	Dimensions(WxDxH)
One-Way Cassette Dip Switch (Up to 24 SEER2)	CH-RSH06-12MCT1W	50.31x13.19x8.98
Ceiling Cassette Pro (9K-12K dip switch, ref sensor & humidity sensor) (Up To 22.6 SEER2)	CH-RSH09-12MCT	22.44x22.44x9.65
Ceiling Cassette (without dip switch, without ref sensor & with humidity sensor) (Up To 22.6 SEER2)	CH-RH12MCT	22.44x22.44x9.65
Other Units	SKU	Dimensions(WxDxH)
Slim Duct/Concealed Duct Dip Switch (Up To 21.4 SEER2)	CH-RS06-12MDT- MS	27.56 x 19.92 x 7.87
Mini Floor Console (Up to 27.2 SEER2)	CH-RSH12MMC	31.26x7.87x24.45



18,000 BTU Compatible Units

Wall Mounts	SKU	Dimensions(WxDxH)
Astoria (Up to 27.4 SEER2)	CH-RH18MASTWM-230VI	40.31x9.69x12.64
Astoria Pro (Up to 27.4 SEER2)	CH-PRO18MASTWM-230VI	40.31x9.69x12.64
Olivia (Up to 26 SEER2)	CH-R18MOLVWM-230VI	42.60x9.21x13.27
Olivia Midnight (Black Style, Up to 26 SEER2)	CH-RB18MOLVWM-230VI	42.60x9.21x13.27
Ceiling Cassettes	SKU	Dimensions(WxDxH)
One-Way Cassette (Up to 24 SEER2)	СH-RSH18MCT1W	50.31x13.19x8.98
Ceiling Cassette Pro (ref sensor & humidity sensor) (Up To 22.6 SEER2)	CH-RSH18MCT	22.44x22.44x9.65
Ceiling Cassette  (without ref sensor & with humidity sensor) (Up To 22.6 SEER2)	CH-RH18MCT	22.44x22.44x9.65
Other Units	SKU	Dimensions(WxDxH)
Slim Duct/Concealed Duct (Up To 21.4 SEER2)	CH-RS18MDT-MS	34.65 x 26.54 x 8.27
Mini Floor Console 16k (Up to 27.2 SEER2)	CH-RSH16MMC	31.26x7.87x24.45
Universal Floor Ceiling (UP TO 23.3 SEER2)	CH-RSH18MFC	42.05x26.57x9.25
Multi-Position Air Handler (UP TO 19.7 SEER2)	CH-RS18MAHU	17.52x21.02x45



24,000 BTU Compatible Units

Wall Mounts	SKU	Dimensions(WxDxH)
Astoria (Up to 27.4 SEER2)	CH-RH24MASTWM-230VI	47.13x11.02x14.61
Astoria Pro (Up to 27.4 SEER2)	CH-PRO24MASTWM-230VI	47.13x11.02x14.61
Olivia (Up to 26 SEER2)	CH-R24MOLVWM-230VI	42.60x9.21x13.27
Olivia Midnight (Black Style, Up to 26 SEER2)	CH-RB24MOLVWM-230VI	42.60x9.21x13.27
Ceiling Cassettes	SKU	Dimensions(WxDxH)
Ceiling Cassette Pro (ref sensor & humidity sensor) (Up To 22.6 SEER2)	CH-RSH24MCT	32.68x32.68x8.07
Ceiling Cassette  (without ref sensor & with humidity sensor) (Up To 22.6 SEER2)	CH-RH24MCT	32.68x32.68x8.07
Other Units	SKU	Dimensions(WxDxH)
Slim Duct/Concealed Duct (Up To 21.4 SEER2)	CH-RS24MDT-HS	39.37 x 29.53 x 9.65
Universal Floor Ceiling (UP TO 23.3 SEER2)	CH-RSH24MFC	42.05x26.57x9.25
Multi-Position Air Handler (UP TO 19.7 SEER2)	CH-RS24MAHU	17.52x21.02x 5



30,000 BTU Compatible Units

Wall Mounts	SKU	Dimensions(WxDxH)
Astoria (Up to 27.4 SEER2)	CH-RH30MASTWM-230VI	47.13x11.02x14.61
Astoria Pro (Up to 27.4 SEER2)	CH-PRO30MASTWM-230VI	47.13x11.02x14.61
Olivia (Up to 26 SEER2)	CH-R30MELVWM-230VI	49.57x11.14x14.25
Other Units	SKU	Dimensions(WxDxH)
Multi-Position Air Handler (UP TO 19.7 SEER2)	CH-RS30MAHU	21.02x21.02x49.02

36,000 BTU Compatible Units

Wall Mounts	SKU	Dimensions(WxDxH)
Astoria (Up to 28.1 SEER2)	CH-RH36MASTWM-230VI	47.13x11.02x14.61
Astoria Pro (Up to 27.4 SEER2)	CH-PRO36MASTWM-230VI	47.13x11.02x14.61
Olivia (Up to 26 SEER2)	CH-R36MELVWM-230VI	49.57x11.14x14.25

Sizing and Compatibility:

Combination Chart

The capacity and number of systems can vary for each outdoor unit. Consult the combination chart for potential loading configurations. Ensure the total capacity of all connected indoor units aligns with the minimum and maximum loading range of the selected outdoor unit. It is not mandatory to utilize all circuits on an outdoor unit; some circuits may remain sealed without an attached indoor unit.



Warranty

• 7 year compressor limited warranty
• 5 year parts limited warranty (must be installed by a licensed HVAC technician)
• 1 year remote control



Technical Information

Model Number: CH-R60MES-230VO

Outdoor Model			CH-R60MES-230VO
Power Supply	Rated	V, Ph, Hz	208-230-1-64
	Voltage Range	V	187-253
Cooling	Rated Capacity (range)	Btu/h	19,000~62,000
	Rated Current	A	26.2
	EER2	Btu/h	10
	SEER2	Btu/h	22
Heating at 47°F	Rated Capacity (range)	Btu/h	20,000~60,000
	Rated Current	A	21
	COP	W/W	3.7
	HSPF4		9.5
	HSPF5		7.4
Heating at 5°F	Rated Capacity	Btu/h	39000
Minimum Circuit Ampacity (Outdoor unit)		A	40
Max. Fuse (Outdoor unit)		A	40
Outdoor Air Flow (Max)		CFM	4502.8
Outdoor Noise Level (Sound Pressure)		dB(A)	65
Dimension (W×D×H)		inch	37.48x16.34x52.48
Packing (W×D×H)		inch	43.11x19.49x58.27
Net/Gross Weight			43.11x19.49x58.27
Refrigerant Type/Charged		oz	R454B/151.68
Refrigerant Precharge			150
Additional Charge for Each	0.16 for 1/4 in liquid pipe / 0.32 for 3/8 in liquid pipe	oz/ft	0.16/0.32
Design Pressure		PSIG	550/340
Refrigerant Piping	Liquid Side	inch	6 x 1/4”
	Gas Side	inch	4 x 3/8” + 2 x 1/2”
Max. Pipe Length		ft	262.4
Max. Length for One Indoor Unit		ft	114.8
Max. Height Difference in Level		ft	49.2
Max. Height Difference Between Indoor Units		ft	33
Ambient Temperature	Cooling	°F	-13~122
	Heating	°F	-13-75
