Cooper & Hunter MES 48,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Cooper & Hunter MES 48,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Summary

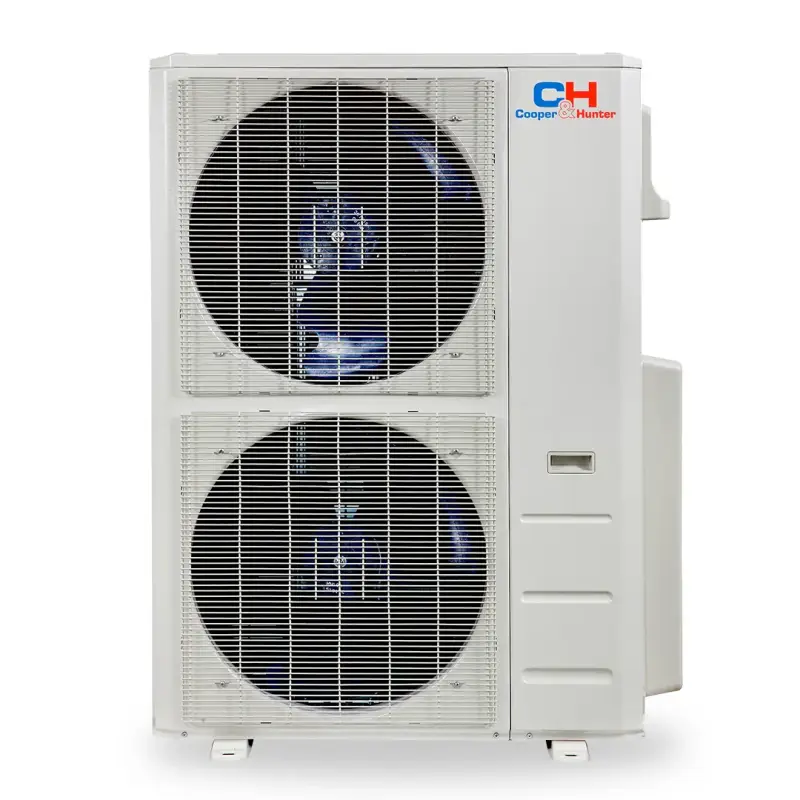

Experience the ultimate combination of performance and versatility with C&H’s Multi Zone Hyper Heat condenser series, available in 19K, 28K, 36K, 48K, and 55K BTU/h capacities. Designed to deliver reliable heating and cooling, even in extreme conditions as low as -22°F, these outdoor units boast impressive efficiency with up to 23 SEER.
Certified for superior performance, these units support up to 5 independent zones, offering a customizable solution tailored to your space. Choose from a variety of indoor model types, including Wall Mounts, Ceiling Cassettes, Universal Floor/Ceiling, Mini Floor Consoles, Slim Ducts, and Air Handler Units, to match your unique needs and aesthetic preferences.
Important
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. This is an Outdoor Unit ONLY. Please ensure that you have made a correct selection for an indoor unit as well in our Indoor Units section. Units are pre-charged with refrigerant up to 125FT.
What's Included
- 48,000 BTU 230V Hyper Heat Multi-Zone Outdoor Condenser Air Conditioner (CH-CH-R48MES-230VO)
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Zone Combinations
| 2 ZONES | 3 ZONES | 4 ZONES | 5 ZONES | 6 ZONES |
| 6K+18K | 6K+6K+18K | 6K+6K+6K+6K | 6K+6K+6K+6K+6K | 6K+6K+6K+6K+6K+6K |
| 6K+24K | 6K+6K+24K | 6K+6K+6K+9K | 6K+6K+6K+6K+9K | 6K+6K+6K+6K+6K+9K |
| 6K+30K | 6K+6K+30K | 6K+6K+6K+12K | 6K+6K+6K+6K+12K | 6K+6K+6K+6K+6K+12K |
| 6K+36K | 6K+6K+36K | 6K+6K+6K+18K | 6K+6K+6K+6K+18K | 6K+6K+6K+6K+6K+18K |
| 9K+18K | 6K+9K+9K | 6K+6K+6K+24K | 6K+6K+6K+6K+24K | 6K+6K+6K+6K+6K+24K |
| 9K+24K | 6K+9K+12K | 6K+6K+9K+9K | 6K+6K+6K+9K+9K | 6K+6K+6K+6K+9K+9K |
| 9K+30K | 6K+9K+18K | 6K+6K+9K+12K | 6K+6K+6K+9K+12K | 6K+6K+6K+6K+9K+12K |
| 9K+36K | 6K+9K+24K | 6K+6K+9K+18K | 6K+6K+6K+9K+18K | 6K+6K+6K+6K+9K+18K |
| 12K+12K | 6K+9K+30K | 6K+6K+9K+24K | 6K+6K+6K+9K+24K | 6K+6K+6K+6K+9K+24K |
| 12K+18K | 6K+9K+36K | 6K+6K+12K+12K | 6K+6K+6K+12K+12K | 6K+6K+6K+6K+12K+12K |
| 12K+24K | 6K+12K+12K | 6K+6K+12K+18K | 6K+6K+6K+12K+18K | 6K+6K+6K+6K+12K+18K |
| 12K+30K | 6K+12K+18K | 6K+6K+12K+24K | 6K+6K+6K+12K+24K | 6K+6K+6K+6K+12K+24K |
| 12K+36K | 6K+12K+24K | 6K+6K+18K+18K | 6K+6K+6K+18K+18K | 6K+6K+6K+9K+9K+9K |
| 18K+18K | 6K+12K+30K | 6K+6K+18K+24K | 6K+6K+6K+18K+24K | 6K+6K+6K+9K+9K+12K |
| 18K+24K | 6K+12K+36K | 6K+9K+9K+9K | 6K+6K+9K+9K+9K | 6K+6K+6K+9K+9K+18K |
| 18K+30K | 6K+18K+18K | 6K+9K+9K+12K | 6K+6K+9K+9K+12K | 6K+6K+6K+9K+9K+24K |
| 18K+36K | 6K+18K+24K | 6K+9K+9K+18K | 6K+6K+9K+9K+18K | 6K+6K+6K+9K+12K+12K |
| 24K+24K | 6K+18K+30K | 6K+9K+9K+24K | 6K+6K+9K+9K+24K | 6K+6K+6K+9K+12K+18K |
| 24K+30K | 6K+18K+36K | 6K+9K+12K+12K | 6K+6K+9K+12K+12K | 6K+6K+6K+9K+12K+24K |
| 24K+36K | 9K+9K+9K | 6K+9K+12K+18K | 6K+6K+9K+12K+18K | 6K+6K+6K+12K+12K+12K |
| 9K+9K+12K | 6K+9K+12K+24K | 6K+6K+9K+12K+24K | 6K+6K+6K+12K+12K+18K | |
| 9K+9K+18K | 6K+9K+18K+18K | 6K+6K+9K+18K+18K | 6K+6K+6K+12K+12K+24K | |
| 9K+9K+24K | 6K+9K+18K+24K | 6K+6K+9K+18K+24K | 6K+6K+9K+9K+9K+9K | |
| 9K+9K+30K | 6K+12K+12K+12K | 6K+6K+12K+12K+12K | 6K+6K+9K+9K+9K+12K | |
| 9K+9K+36K | 6K+12K+12K+18K | 6K+6K+12K+12K+18K | 6K+6K+9K+9K+9K+18K | |
| 9K+12K+12K | 6K+12K+12K+24K | 6K+6K+12K+12K+24K | 6K+6K+9K+9K+9K+24K | |
| 9K+12K+18K | 6K+12K+18K+18K | 6K+6K+12K+18K+18K | 6K+6K+9K+9K+12K+12K | |
| 9K+12K+24K | 6K+12K+18K+24K | 6K+6K+12K+18K+24K | 6K+6K+9K+9K+12K+18K | |
| 9K+12K+30K | 6K+18K+18K+18K | 6K+6K+18K+18K+18K | 6K+6K+9K+9K+12K+24K | |
| 9K+12K+36K | 6K+18K+18K+24K | 6K+6K+18K+18K+24K | 6K+6K+9K+12K+12K+12K | |
| 9K+18K+18K | 9K+9K+9K+9K | 6K+9K+9K+9K+9K | 6K+6K+9K+12K+12K+18K | |
| 9K+18K+24K | 9K+9K+9K+12K | 6K+9K+9K+9K+12K | 6K+6K+9K+12K+12K+24K | |
| 9K+18K+30K | 9K+9K+9K+18K | 6K+9K+9K+9K+18K | 6K+6K+12K+12K+12K+12K | |
| 9K+18K+36K | 9K+9K+9K+24K | 6K+9K+9K+9K+24K | 6K+6K+12K+12K+12K+18K | |
| 12K+12K+12K | 9K+9K+12K+12K | 6K+9K+9K+12K+12K | 6K+6K+12K+12K+12K+24K | |
| 12K+12K+18K | 9K+9K+12K+18K | 6K+9K+9K+12K+18K | 6K+9K+9K+9K+9K+9K | |
| 12K+12K+24K | 9K+9K+12K+24K | 6K+9K+9K+12K+24K | 6K+9K+9K+9K+9K+12K | |
| 12K+12K+30K | 9K+9K+18K+18K | 6K+9K+9K+18K+18K | 6K+9K+9K+9K+9K+18K | |
| 12K+12K+36K | 9K+9K+18K+24K | 6K+9K+9K+18K+24K | 6K+9K+9K+9K+9K+24K | |
| 12K+18K+18K | 9K+12K+12K+12K | 6K+9K+12K+12K+12K | 6K+9K+9K+9K+12K+12K | |
| 12K+18K+24K | 9K+12K+12K+18K | 6K+9K+12K+12K+18K | 6K+9K+9K+9K+12K+18K | |
| 12K+18K+30K | 9K+12K+12K+24K | 6K+9K+12K+12K+24K | 6K+9K+9K+9K+12K+24K | |
| 12K+18K+36K | 9K+12K+18K+18K | 6K+9K+12K+18K+18K | 6K+9K+9K+12K+12K+12K | |
| 18K+18K+18K | 9K+12K+18K+24K | 6K+9K+12K+18K+24K | 6K+9K+9K+12K+12K+18K | |
| 9K+18K+18K+18K | 6K+9K+18K+18K+18K | 6K+9K+9K+12K+12K+24K | ||
| 12K+12K+12K+12K | 6K+12K+12K+12K+12K | 6K+9K+12K+12K+12K+12K | ||
| 12K+12K+12K+18K | 6K+12K+12K+12K+18K | 6K+9K+12K+12K+12K+18K | ||
| 12K+12K+12K+24K | 6K+12K+12K+12K+24K | 6K+12K+12K+12K+12K+12K | ||
| 12K+12K+18K+18K | 6K+12K+12K+18K+18K | 6K+12K+12K+12K+12K+18K | ||
| 12K+12K+18K+24K | 6K+12K+18K+18K+18K | 9K+9K+9K+9K+9K+9K | ||
| 12K+18K+18K+18K | 9K+9K+9K+9K+9K | 9K+9K+9K+9K+9K+12K | ||
| 9K+9K+9K+9K+12K | 9K+9K+9K+9K+9K+18K | |||
| 9K+9K+9K+9K+18K | 9K+9K+9K+9K+9K+24K | |||
| 9K+9K+9K+9K+24K | 9K+9K+9K+9K+12K+12K | |||
| 9K+9K+9K+12K+12K | 9K+9K+9K+9K+12K+18K | |||
| 9K+9K+9K+12K+18K | 9K+9K+9K+9K+12K+24K | |||
| 9K+9K+9K+12K+24K | 9K+9K+9K+12K+12K+12K | |||
| 9K+9K+9K+18K+18K | 9K+9K+9K+12K+12K+18K | |||
| 9K+9K+9K+18K+24K | 9K+9K+12K+12K+12K+12K | |||
| 9K+9K+12K+12K+12K | 9K+9K+12K+12K+12K+18K | |||
| 9K+9K+12K+12K+18K | 9K+12K+12K+12K+12K+12K | |||
| 9K+9K+12K+12K+24K | 12K+12K+12K+12K+12K+12K | |||
| 9K+9K+12K+18K+18K | ||||
| 9K+9K+12K+18K+24K | ||||
| 9K+9K+18K+18K+18K | ||||
| 9K+12K+12K+12K+12K | ||||
| 9K+12K+12K+12K+18K | ||||
| 9K+12K+12K+12K+24K | ||||
| 9K+12K+12K+18K+18K | ||||
| 12K+12K+12K+12K+12K | ||||
| 12K+12K+12K+12K+18K | ||||
| 12K+12K+12K+12K+24K | ||||
| 12K+12K+12K+18K+18K |
| *Note: Units marked in BOLD can be either a Multi-position Air Handler, or other Indoor unit TYPE |
6,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH06MASTWM-230VI | 33.74x9.09x11.81 |
| Astoria Pro (Up to 27.4 SEER2) | CH-PRO06MASTWM-230VI | 33.74x9.09x11.81 |
| Olivia (Up to 26 SEER2) | CH-R06MOLVWM-230VI | 28.70x7.87x11.50 |
|
Ceiling Cassettes |
SKU | Dimensions(WxDxH) |
| One-Way Cassette Dip Switch (Up to 24 SEER2) | CH-RSH06-12MCT1W | 50.31x13.19x8.98 |
| Other Units | SKU | Dimensions(WxDxH) |
| Slim Duct Dip Switch (Up to 21.4 SEER2) | CH-RS06-12MDT- MS | 27.56 x 19.92 x 7.87 |
9,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH09MASTWM-230VI | 33.74x9.09x11.81 |
| Astoria Pro (Up to 27.4 SEER2) | CH-PRO09MASTWM-230VI | 33.74x9.09x11.81 |
| Olivia (Up to 26 SEER2) | CH-R09MOLVWM-230VI | 31.57x7.87x11.61 |
| Olivia Midnight (Black Style, Up to 26 SEER2) | CH-RB09MOLVWM-230VI | 31.57x7.87x11.61 |
| Ceiling Cassettes | SKU | Dimensions(WxDxH) |
| One-Way Cassette Dip Switch (Up to 24 SEER2) | CH-RSH06-12MCT1W | 50.31x13.19x8.98 |
| Ceiling Cassette Pro (9K-12K dip switch, ref sensor & humidity sensor) (Up To 22.6 SEER2) | CH-RSH09-12MCT | 22.44x22.44x9.65 |
| Ceiling Cassette (without dip switch, without ref sensor & with humidity sensor) (Up To 22.6 SEER2) | CH-RH09MCT | 22.44x22.44x9.65 |
| Other Units | SKU | Dimensions(WxDxH) |
| Slim Duct/Concealed Duct Dip Switch (Up To 21.4 SEER2) | CH-RS06-12MDT- MS | 27.56 x 19.92 x 7.87 |
| Mini Floor Console (Up To 27.2 SEER2) | CH-RSH09MMC | 31.26x7.87x24.45 |
12,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH12MASTWM-230VI | 33.74x9.09x11.81 |
| Astoria Pro (Up to 27.4 SEER2) | CH-PRO12MASTWM-230VI | 33.74x9.09x11.81 |
| Olivia (Up to 26 SEER2) | CH-R12MOLVWM-230V | 31.57x7.87x11.61 |
| Olivia Midnight (Black Style, Up to 26 SEER2) | CH-RB12MOLVWM-230VI | 31.57x7.87x11.61 |
| Ceiling Cassettes | SKU | Dimensions(WxDxH) |
| One-Way Cassette Dip Switch (Up to 24 SEER2) | CH-RSH06-12MCT1W | 50.31x13.19x8.98 |
| Ceiling Cassette Pro (9K-12K dip switch, ref sensor & humidity sensor) (Up To 22.6 SEER2) | CH-RSH09-12MCT | 22.44x22.44x9.65 |
| Ceiling Cassette (without dip switch, without ref sensor & with humidity sensor) (Up To 22.6 SEER2) | CH-RH12MCT | 22.44x22.44x9.65 |
| Other Units | SKU | Dimensions(WxDxH) |
| Slim Duct/Concealed Duct Dip Switch (Up To 21.4 SEER2) | CH-RS06-12MDT- MS | 27.56 x 19.92 x 7.87 |
| Mini Floor Console (Up to 27.2 SEER2) | CH-RSH12MMC | 31.26x7.87x24.45 |
18,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH18MASTWM-230VI | 40.31x9.69x12.64 |
| Astoria Pro (Up to 27.4 SEER2) |
CH-PRO18MASTWM-230VI |
40.31x9.69x12.64 |
| Olivia (Up to 26 SEER2) | CH-R18MOLVWM-230VI | 42.60x9.21x13.27 |
| Olivia Midnight (Black Style, Up to 26 SEER2) | CH-RB18MOLVWM-230VI | 42.60x9.21x13.27 |
| Ceiling Cassettes | SKU | Dimensions(WxDxH) |
| One-Way Cassette (Up to 24 SEER2) | СH-RSH18MCT1W | 50.31x13.19x8.98 |
| Ceiling Cassette Pro (ref sensor & humidity sensor) (Up To 22.6 SEER2) | CH-RSH18MCT | 22.44x22.44x9.65 |
| Ceiling Cassette (without ref sensor & with humidity sensor) (Up To 22.6 SEER2) | CH-RH18MCT | 22.44x22.44x9.65 |
| Other Units | SKU | Dimensions(WxDxH) |
| Slim Duct/Concealed Duct (Up To 21.4 SEER2) | CH-RS18MDT-MS | 34.65 x 26.54 x 8.27 |
| Mini Floor Console 16k (Up to 27.2 SEER2) | CH-RSH16MMC | 31.26x7.87x24.45 |
| Universal Floor Ceiling (UP TO 23.3 SEER2) | CH-RSH18MFC | 42.05x26.57x9.25 |
| Multi-Position Air Handler (UP TO 19.7 SEER2) | CH-RS18MAHU | 17.52x21.02x45 |
24,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH24MASTWM-230VI | 47.13x11.02x14.61 |
| Astoria Pro (Up to 27.4 SEER2) |
CH-PRO24MASTWM-230VI |
47.13x11.02x14.61 |
| Olivia (Up to 26 SEER2) | CH-R24MOLVWM-230VI | 42.60x9.21x13.27 |
| Olivia Midnight (Black Style, Up to 26 SEER2) | CH-RB24MOLVWM-230VI | 42.60x9.21x13.27 |
| Ceiling Cassettes | SKU | Dimensions(WxDxH) |
| Ceiling Cassette Pro (ref sensor & humidity sensor) (Up To 22.6 SEER2) | CH-RSH24MCT | 32.68x32.68x8.07 |
| Ceiling Cassette (without ref sensor & with humidity sensor) (Up To 22.6 SEER2) | CH-RH24MCT | 32.68x32.68x8.07 |
| Other Units | SKU | Dimensions(WxDxH) |
| Slim Duct/Concealed Duct (Up To 21.4 SEER2) | CH-RS24MDT-HS | 39.37 x 29.53 x 9.65 |
| Universal Floor Ceiling (UP TO 23.3 SEER2) | CH-RSH24MFC | 42.05x26.57x9.25 |
| Multi-Position Air Handler (UP TO 19.7 SEER2) | CH-RS24MAHU | 17.52x21.02x 5 |
30,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH30MASTWM-230VI | 47.13x11.02x14.61 |
| Astoria Pro (Up to 27.4 SEER2) | CH-PRO30MASTWM-230VI |
47.13x11.02x14.61 |
| Olivia (Up to 26 SEER2) | CH-R30MELVWM-230VI | 49.57x11.14x14.25 |
| Other Units | SKU | Dimensions(WxDxH) |
| Multi-Position Air Handler (UP TO 19.7 SEER2) | CH-RS30MAHU |
21.02x21.02x49.02 |
36,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 28.1 SEER2) | CH-RH36MASTWM-230VI | 47.13x11.02x14.61 |
| Astoria Pro (Up to 27.4 SEER2) |
CH-PRO36MASTWM-230VI |
47.13x11.02x14.61 |
| Olivia (Up to 26 SEER2) | CH-R36MELVWM-230VI | 49.57x11.14x14.25 |
Sizing and Compatibility:
Combination Chart
The capacity and number of systems can vary for each outdoor unit. Consult the combination chart for potential loading configurations. Ensure the total capacity of all connected indoor units aligns with the minimum and maximum loading range of the selected outdoor unit. It is not mandatory to utilize all circuits on an outdoor unit; some circuits may remain sealed without an attached indoor unit.
Warranty
- 7 year compressor limited warranty
- 5 year parts limited warranty (must be installed by a licensed HVAC technician)
- 1 year remote control
Technical Information
Model Number: CH-R48MES-230VO
| Outdoor Model | CH-R48MES-230VO |
| Power Supply | |
| Rated (V, Ph, Hz) | 208/230, 1, 60 |
| Voltage Range (V) | 187-253 |
| Cooling | |
| Rated Capacity (range) (Btu/h) | 12,000~55,000 |
| Rated Current (A) | 16.6 |
| EER2 (Btu/h/W) | 12.5 |
| SEER2 | 24 |
| Heating at 47°F | |
| Rated Capacity (range) (Btu/h) | 13,000~53,000 |
| Rated Current (A) | 16.3 |
| COP (W/W) | 3.8 |
| HSPF4 | 10.3 |
| HSPF5 | 8 |
| Heating at 5°F | |
| Rated Capacity (Btu/h) | 36,000 |
| Minimum Circuit Ampacity (Outdoor unit) (A) | 40 |
| Max. Fuse (Outdoor unit) (A) | 45 |
| Outdoor Air Flow (Max) (CFM) | 4,502.8 |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 63 |
| Dimension (W×D×H) (inch) | 37.48x16.34x52.48 |
| Packing (W×D×H) (inch) | 43.11x19.49x58.27 |
| Net/Gross Weight (lbs) | 222.00/254.19 |
| Refrigerant Type/Charged (oz) | R454B/61.73 |
| Refrigerant Precharge (ft) | 150 |
| Additional Charge for Each (oz/ft) | 0.16 |
| Design Pressure (PSIG) | 550/340 |
| Refrigerant Piping | |
| Liquid Side (inch) | 6 x 1/4” |
| Gas Side (inch) | 4 x 3/8” + 2 x 1/2” |
| Max. Pipe Length (ft) | 262.4 |
| Max. Length for One Indoor Unit (ft) | 114.8 |
| Max. Height Difference in Level (ft) | 49.2 |
| Max. Height Difference Between Indoor Units (ft) | 33 |
| Ambient Temperature | |
| Cooling (°F) | -13~122 |
| Heating (°F) | -13~75 |
| Certification | |
| AHRI | ✓ |
| Energy Star for Cold Climate | ✓ |
| NEEP | ✓ |
| ETL | ✓ |
Certifications
$4,141.00
Cooper & Hunter MES 48,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump—
$4,141.00
Cooper & Hunter MES 48,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Summary
Experience the ultimate combination of performance and versatility with C&H’s Multi Zone Hyper Heat condenser series, available in 19K, 28K, 36K, 48K, and 55K BTU/h capacities. Designed to deliver reliable heating and cooling, even in extreme conditions as low as -22°F, these outdoor units boast impressive efficiency with up to 23 SEER.
Certified for superior performance, these units support up to 5 independent zones, offering a customizable solution tailored to your space. Choose from a variety of indoor model types, including Wall Mounts, Ceiling Cassettes, Universal Floor/Ceiling, Mini Floor Consoles, Slim Ducts, and Air Handler Units, to match your unique needs and aesthetic preferences.
Important
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. This is an Outdoor Unit ONLY. Please ensure that you have made a correct selection for an indoor unit as well in our Indoor Units section. Units are pre-charged with refrigerant up to 125FT.
What's Included
- 48,000 BTU 230V Hyper Heat Multi-Zone Outdoor Condenser Air Conditioner (CH-CH-R48MES-230VO)
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Zone Combinations
| 2 ZONES | 3 ZONES | 4 ZONES | 5 ZONES | 6 ZONES |
| 6K+18K | 6K+6K+18K | 6K+6K+6K+6K | 6K+6K+6K+6K+6K | 6K+6K+6K+6K+6K+6K |
| 6K+24K | 6K+6K+24K | 6K+6K+6K+9K | 6K+6K+6K+6K+9K | 6K+6K+6K+6K+6K+9K |
| 6K+30K | 6K+6K+30K | 6K+6K+6K+12K | 6K+6K+6K+6K+12K | 6K+6K+6K+6K+6K+12K |
| 6K+36K | 6K+6K+36K | 6K+6K+6K+18K | 6K+6K+6K+6K+18K | 6K+6K+6K+6K+6K+18K |
| 9K+18K | 6K+9K+9K | 6K+6K+6K+24K | 6K+6K+6K+6K+24K | 6K+6K+6K+6K+6K+24K |
| 9K+24K | 6K+9K+12K | 6K+6K+9K+9K | 6K+6K+6K+9K+9K | 6K+6K+6K+6K+9K+9K |
| 9K+30K | 6K+9K+18K | 6K+6K+9K+12K | 6K+6K+6K+9K+12K | 6K+6K+6K+6K+9K+12K |
| 9K+36K | 6K+9K+24K | 6K+6K+9K+18K | 6K+6K+6K+9K+18K | 6K+6K+6K+6K+9K+18K |
| 12K+12K | 6K+9K+30K | 6K+6K+9K+24K | 6K+6K+6K+9K+24K | 6K+6K+6K+6K+9K+24K |
| 12K+18K | 6K+9K+36K | 6K+6K+12K+12K | 6K+6K+6K+12K+12K | 6K+6K+6K+6K+12K+12K |
| 12K+24K | 6K+12K+12K | 6K+6K+12K+18K | 6K+6K+6K+12K+18K | 6K+6K+6K+6K+12K+18K |
| 12K+30K | 6K+12K+18K | 6K+6K+12K+24K | 6K+6K+6K+12K+24K | 6K+6K+6K+6K+12K+24K |
| 12K+36K | 6K+12K+24K | 6K+6K+18K+18K | 6K+6K+6K+18K+18K | 6K+6K+6K+9K+9K+9K |
| 18K+18K | 6K+12K+30K | 6K+6K+18K+24K | 6K+6K+6K+18K+24K | 6K+6K+6K+9K+9K+12K |
| 18K+24K | 6K+12K+36K | 6K+9K+9K+9K | 6K+6K+9K+9K+9K | 6K+6K+6K+9K+9K+18K |
| 18K+30K | 6K+18K+18K | 6K+9K+9K+12K | 6K+6K+9K+9K+12K | 6K+6K+6K+9K+9K+24K |
| 18K+36K | 6K+18K+24K | 6K+9K+9K+18K | 6K+6K+9K+9K+18K | 6K+6K+6K+9K+12K+12K |
| 24K+24K | 6K+18K+30K | 6K+9K+9K+24K | 6K+6K+9K+9K+24K | 6K+6K+6K+9K+12K+18K |
| 24K+30K | 6K+18K+36K | 6K+9K+12K+12K | 6K+6K+9K+12K+12K | 6K+6K+6K+9K+12K+24K |
| 24K+36K | 9K+9K+9K | 6K+9K+12K+18K | 6K+6K+9K+12K+18K | 6K+6K+6K+12K+12K+12K |
| 9K+9K+12K | 6K+9K+12K+24K | 6K+6K+9K+12K+24K | 6K+6K+6K+12K+12K+18K | |
| 9K+9K+18K | 6K+9K+18K+18K | 6K+6K+9K+18K+18K | 6K+6K+6K+12K+12K+24K | |
| 9K+9K+24K | 6K+9K+18K+24K | 6K+6K+9K+18K+24K | 6K+6K+9K+9K+9K+9K | |
| 9K+9K+30K | 6K+12K+12K+12K | 6K+6K+12K+12K+12K | 6K+6K+9K+9K+9K+12K | |
| 9K+9K+36K | 6K+12K+12K+18K | 6K+6K+12K+12K+18K | 6K+6K+9K+9K+9K+18K | |
| 9K+12K+12K | 6K+12K+12K+24K | 6K+6K+12K+12K+24K | 6K+6K+9K+9K+9K+24K | |
| 9K+12K+18K | 6K+12K+18K+18K | 6K+6K+12K+18K+18K | 6K+6K+9K+9K+12K+12K | |
| 9K+12K+24K | 6K+12K+18K+24K | 6K+6K+12K+18K+24K | 6K+6K+9K+9K+12K+18K | |
| 9K+12K+30K | 6K+18K+18K+18K | 6K+6K+18K+18K+18K | 6K+6K+9K+9K+12K+24K | |
| 9K+12K+36K | 6K+18K+18K+24K | 6K+6K+18K+18K+24K | 6K+6K+9K+12K+12K+12K | |
| 9K+18K+18K | 9K+9K+9K+9K | 6K+9K+9K+9K+9K | 6K+6K+9K+12K+12K+18K | |
| 9K+18K+24K | 9K+9K+9K+12K | 6K+9K+9K+9K+12K | 6K+6K+9K+12K+12K+24K | |
| 9K+18K+30K | 9K+9K+9K+18K | 6K+9K+9K+9K+18K | 6K+6K+12K+12K+12K+12K | |
| 9K+18K+36K | 9K+9K+9K+24K | 6K+9K+9K+9K+24K | 6K+6K+12K+12K+12K+18K | |
| 12K+12K+12K | 9K+9K+12K+12K | 6K+9K+9K+12K+12K | 6K+6K+12K+12K+12K+24K | |
| 12K+12K+18K | 9K+9K+12K+18K | 6K+9K+9K+12K+18K | 6K+9K+9K+9K+9K+9K | |
| 12K+12K+24K | 9K+9K+12K+24K | 6K+9K+9K+12K+24K | 6K+9K+9K+9K+9K+12K | |
| 12K+12K+30K | 9K+9K+18K+18K | 6K+9K+9K+18K+18K | 6K+9K+9K+9K+9K+18K | |
| 12K+12K+36K | 9K+9K+18K+24K | 6K+9K+9K+18K+24K | 6K+9K+9K+9K+9K+24K | |
| 12K+18K+18K | 9K+12K+12K+12K | 6K+9K+12K+12K+12K | 6K+9K+9K+9K+12K+12K | |
| 12K+18K+24K | 9K+12K+12K+18K | 6K+9K+12K+12K+18K | 6K+9K+9K+9K+12K+18K | |
| 12K+18K+30K | 9K+12K+12K+24K | 6K+9K+12K+12K+24K | 6K+9K+9K+9K+12K+24K | |
| 12K+18K+36K | 9K+12K+18K+18K | 6K+9K+12K+18K+18K | 6K+9K+9K+12K+12K+12K | |
| 18K+18K+18K | 9K+12K+18K+24K | 6K+9K+12K+18K+24K | 6K+9K+9K+12K+12K+18K | |
| 9K+18K+18K+18K | 6K+9K+18K+18K+18K | 6K+9K+9K+12K+12K+24K | ||
| 12K+12K+12K+12K | 6K+12K+12K+12K+12K | 6K+9K+12K+12K+12K+12K | ||
| 12K+12K+12K+18K | 6K+12K+12K+12K+18K | 6K+9K+12K+12K+12K+18K | ||
| 12K+12K+12K+24K | 6K+12K+12K+12K+24K | 6K+12K+12K+12K+12K+12K | ||
| 12K+12K+18K+18K | 6K+12K+12K+18K+18K | 6K+12K+12K+12K+12K+18K | ||
| 12K+12K+18K+24K | 6K+12K+18K+18K+18K | 9K+9K+9K+9K+9K+9K | ||
| 12K+18K+18K+18K | 9K+9K+9K+9K+9K | 9K+9K+9K+9K+9K+12K | ||
| 9K+9K+9K+9K+12K | 9K+9K+9K+9K+9K+18K | |||
| 9K+9K+9K+9K+18K | 9K+9K+9K+9K+9K+24K | |||
| 9K+9K+9K+9K+24K | 9K+9K+9K+9K+12K+12K | |||
| 9K+9K+9K+12K+12K | 9K+9K+9K+9K+12K+18K | |||
| 9K+9K+9K+12K+18K | 9K+9K+9K+9K+12K+24K | |||
| 9K+9K+9K+12K+24K | 9K+9K+9K+12K+12K+12K | |||
| 9K+9K+9K+18K+18K | 9K+9K+9K+12K+12K+18K | |||
| 9K+9K+9K+18K+24K | 9K+9K+12K+12K+12K+12K | |||
| 9K+9K+12K+12K+12K | 9K+9K+12K+12K+12K+18K | |||
| 9K+9K+12K+12K+18K | 9K+12K+12K+12K+12K+12K | |||
| 9K+9K+12K+12K+24K | 12K+12K+12K+12K+12K+12K | |||
| 9K+9K+12K+18K+18K | ||||
| 9K+9K+12K+18K+24K | ||||
| 9K+9K+18K+18K+18K | ||||
| 9K+12K+12K+12K+12K | ||||
| 9K+12K+12K+12K+18K | ||||
| 9K+12K+12K+12K+24K | ||||
| 9K+12K+12K+18K+18K | ||||
| 12K+12K+12K+12K+12K | ||||
| 12K+12K+12K+12K+18K | ||||
| 12K+12K+12K+12K+24K | ||||
| 12K+12K+12K+18K+18K |
| *Note: Units marked in BOLD can be either a Multi-position Air Handler, or other Indoor unit TYPE |
6,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH06MASTWM-230VI | 33.74x9.09x11.81 |
| Astoria Pro (Up to 27.4 SEER2) | CH-PRO06MASTWM-230VI | 33.74x9.09x11.81 |
| Olivia (Up to 26 SEER2) | CH-R06MOLVWM-230VI | 28.70x7.87x11.50 |
|
Ceiling Cassettes |
SKU | Dimensions(WxDxH) |
| One-Way Cassette Dip Switch (Up to 24 SEER2) | CH-RSH06-12MCT1W | 50.31x13.19x8.98 |
| Other Units | SKU | Dimensions(WxDxH) |
| Slim Duct Dip Switch (Up to 21.4 SEER2) | CH-RS06-12MDT- MS | 27.56 x 19.92 x 7.87 |
9,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH09MASTWM-230VI | 33.74x9.09x11.81 |
| Astoria Pro (Up to 27.4 SEER2) | CH-PRO09MASTWM-230VI | 33.74x9.09x11.81 |
| Olivia (Up to 26 SEER2) | CH-R09MOLVWM-230VI | 31.57x7.87x11.61 |
| Olivia Midnight (Black Style, Up to 26 SEER2) | CH-RB09MOLVWM-230VI | 31.57x7.87x11.61 |
| Ceiling Cassettes | SKU | Dimensions(WxDxH) |
| One-Way Cassette Dip Switch (Up to 24 SEER2) | CH-RSH06-12MCT1W | 50.31x13.19x8.98 |
| Ceiling Cassette Pro (9K-12K dip switch, ref sensor & humidity sensor) (Up To 22.6 SEER2) | CH-RSH09-12MCT | 22.44x22.44x9.65 |
| Ceiling Cassette (without dip switch, without ref sensor & with humidity sensor) (Up To 22.6 SEER2) | CH-RH09MCT | 22.44x22.44x9.65 |
| Other Units | SKU | Dimensions(WxDxH) |
| Slim Duct/Concealed Duct Dip Switch (Up To 21.4 SEER2) | CH-RS06-12MDT- MS | 27.56 x 19.92 x 7.87 |
| Mini Floor Console (Up To 27.2 SEER2) | CH-RSH09MMC | 31.26x7.87x24.45 |
12,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH12MASTWM-230VI | 33.74x9.09x11.81 |
| Astoria Pro (Up to 27.4 SEER2) | CH-PRO12MASTWM-230VI | 33.74x9.09x11.81 |
| Olivia (Up to 26 SEER2) | CH-R12MOLVWM-230V | 31.57x7.87x11.61 |
| Olivia Midnight (Black Style, Up to 26 SEER2) | CH-RB12MOLVWM-230VI | 31.57x7.87x11.61 |
| Ceiling Cassettes | SKU | Dimensions(WxDxH) |
| One-Way Cassette Dip Switch (Up to 24 SEER2) | CH-RSH06-12MCT1W | 50.31x13.19x8.98 |
| Ceiling Cassette Pro (9K-12K dip switch, ref sensor & humidity sensor) (Up To 22.6 SEER2) | CH-RSH09-12MCT | 22.44x22.44x9.65 |
| Ceiling Cassette (without dip switch, without ref sensor & with humidity sensor) (Up To 22.6 SEER2) | CH-RH12MCT | 22.44x22.44x9.65 |
| Other Units | SKU | Dimensions(WxDxH) |
| Slim Duct/Concealed Duct Dip Switch (Up To 21.4 SEER2) | CH-RS06-12MDT- MS | 27.56 x 19.92 x 7.87 |
| Mini Floor Console (Up to 27.2 SEER2) | CH-RSH12MMC | 31.26x7.87x24.45 |
18,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH18MASTWM-230VI | 40.31x9.69x12.64 |
| Astoria Pro (Up to 27.4 SEER2) |
CH-PRO18MASTWM-230VI |
40.31x9.69x12.64 |
| Olivia (Up to 26 SEER2) | CH-R18MOLVWM-230VI | 42.60x9.21x13.27 |
| Olivia Midnight (Black Style, Up to 26 SEER2) | CH-RB18MOLVWM-230VI | 42.60x9.21x13.27 |
| Ceiling Cassettes | SKU | Dimensions(WxDxH) |
| One-Way Cassette (Up to 24 SEER2) | СH-RSH18MCT1W | 50.31x13.19x8.98 |
| Ceiling Cassette Pro (ref sensor & humidity sensor) (Up To 22.6 SEER2) | CH-RSH18MCT | 22.44x22.44x9.65 |
| Ceiling Cassette (without ref sensor & with humidity sensor) (Up To 22.6 SEER2) | CH-RH18MCT | 22.44x22.44x9.65 |
| Other Units | SKU | Dimensions(WxDxH) |
| Slim Duct/Concealed Duct (Up To 21.4 SEER2) | CH-RS18MDT-MS | 34.65 x 26.54 x 8.27 |
| Mini Floor Console 16k (Up to 27.2 SEER2) | CH-RSH16MMC | 31.26x7.87x24.45 |
| Universal Floor Ceiling (UP TO 23.3 SEER2) | CH-RSH18MFC | 42.05x26.57x9.25 |
| Multi-Position Air Handler (UP TO 19.7 SEER2) | CH-RS18MAHU | 17.52x21.02x45 |
24,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH24MASTWM-230VI | 47.13x11.02x14.61 |
| Astoria Pro (Up to 27.4 SEER2) |
CH-PRO24MASTWM-230VI |
47.13x11.02x14.61 |
| Olivia (Up to 26 SEER2) | CH-R24MOLVWM-230VI | 42.60x9.21x13.27 |
| Olivia Midnight (Black Style, Up to 26 SEER2) | CH-RB24MOLVWM-230VI | 42.60x9.21x13.27 |
| Ceiling Cassettes | SKU | Dimensions(WxDxH) |
| Ceiling Cassette Pro (ref sensor & humidity sensor) (Up To 22.6 SEER2) | CH-RSH24MCT | 32.68x32.68x8.07 |
| Ceiling Cassette (without ref sensor & with humidity sensor) (Up To 22.6 SEER2) | CH-RH24MCT | 32.68x32.68x8.07 |
| Other Units | SKU | Dimensions(WxDxH) |
| Slim Duct/Concealed Duct (Up To 21.4 SEER2) | CH-RS24MDT-HS | 39.37 x 29.53 x 9.65 |
| Universal Floor Ceiling (UP TO 23.3 SEER2) | CH-RSH24MFC | 42.05x26.57x9.25 |
| Multi-Position Air Handler (UP TO 19.7 SEER2) | CH-RS24MAHU | 17.52x21.02x 5 |
30,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH30MASTWM-230VI | 47.13x11.02x14.61 |
| Astoria Pro (Up to 27.4 SEER2) | CH-PRO30MASTWM-230VI |
47.13x11.02x14.61 |
| Olivia (Up to 26 SEER2) | CH-R30MELVWM-230VI | 49.57x11.14x14.25 |
| Other Units | SKU | Dimensions(WxDxH) |
| Multi-Position Air Handler (UP TO 19.7 SEER2) | CH-RS30MAHU |
21.02x21.02x49.02 |
36,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 28.1 SEER2) | CH-RH36MASTWM-230VI | 47.13x11.02x14.61 |
| Astoria Pro (Up to 27.4 SEER2) |
CH-PRO36MASTWM-230VI |
47.13x11.02x14.61 |
| Olivia (Up to 26 SEER2) | CH-R36MELVWM-230VI | 49.57x11.14x14.25 |
Sizing and Compatibility:
Combination Chart
The capacity and number of systems can vary for each outdoor unit. Consult the combination chart for potential loading configurations. Ensure the total capacity of all connected indoor units aligns with the minimum and maximum loading range of the selected outdoor unit. It is not mandatory to utilize all circuits on an outdoor unit; some circuits may remain sealed without an attached indoor unit.
Warranty
- 7 year compressor limited warranty
- 5 year parts limited warranty (must be installed by a licensed HVAC technician)
- 1 year remote control
Technical Information
Model Number: CH-R48MES-230VO
| Outdoor Model | CH-R48MES-230VO |
| Power Supply | |
| Rated (V, Ph, Hz) | 208/230, 1, 60 |
| Voltage Range (V) | 187-253 |
| Cooling | |
| Rated Capacity (range) (Btu/h) | 12,000~55,000 |
| Rated Current (A) | 16.6 |
| EER2 (Btu/h/W) | 12.5 |
| SEER2 | 24 |
| Heating at 47°F | |
| Rated Capacity (range) (Btu/h) | 13,000~53,000 |
| Rated Current (A) | 16.3 |
| COP (W/W) | 3.8 |
| HSPF4 | 10.3 |
| HSPF5 | 8 |
| Heating at 5°F | |
| Rated Capacity (Btu/h) | 36,000 |
| Minimum Circuit Ampacity (Outdoor unit) (A) | 40 |
| Max. Fuse (Outdoor unit) (A) | 45 |
| Outdoor Air Flow (Max) (CFM) | 4,502.8 |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 63 |
| Dimension (W×D×H) (inch) | 37.48x16.34x52.48 |
| Packing (W×D×H) (inch) | 43.11x19.49x58.27 |
| Net/Gross Weight (lbs) | 222.00/254.19 |
| Refrigerant Type/Charged (oz) | R454B/61.73 |
| Refrigerant Precharge (ft) | 150 |
| Additional Charge for Each (oz/ft) | 0.16 |
| Design Pressure (PSIG) | 550/340 |
| Refrigerant Piping | |
| Liquid Side (inch) | 6 x 1/4” |
| Gas Side (inch) | 4 x 3/8” + 2 x 1/2” |
| Max. Pipe Length (ft) | 262.4 |
| Max. Length for One Indoor Unit (ft) | 114.8 |
| Max. Height Difference in Level (ft) | 49.2 |
| Max. Height Difference Between Indoor Units (ft) | 33 |
| Ambient Temperature | |
| Cooling (°F) | -13~122 |
| Heating (°F) | -13~75 |
| Certification | |
| AHRI | ✓ |
| Energy Star for Cold Climate | ✓ |
| NEEP | ✓ |
| ETL | ✓ |
Certifications
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Summary
Experience the ultimate combination of performance and versatility with C&H’s Multi Zone Hyper Heat condenser series, available in 19K, 28K, 36K, 48K, and 55K BTU/h capacities. Designed to deliver reliable heating and cooling, even in extreme conditions as low as -22°F, these outdoor units boast impressive efficiency with up to 23 SEER.
Certified for superior performance, these units support up to 5 independent zones, offering a customizable solution tailored to your space. Choose from a variety of indoor model types, including Wall Mounts, Ceiling Cassettes, Universal Floor/Ceiling, Mini Floor Consoles, Slim Ducts, and Air Handler Units, to match your unique needs and aesthetic preferences.
Important
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. This is an Outdoor Unit ONLY. Please ensure that you have made a correct selection for an indoor unit as well in our Indoor Units section. Units are pre-charged with refrigerant up to 125FT.
What's Included
- 48,000 BTU 230V Hyper Heat Multi-Zone Outdoor Condenser Air Conditioner (CH-CH-R48MES-230VO)
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Zone Combinations
| 2 ZONES | 3 ZONES | 4 ZONES | 5 ZONES | 6 ZONES |
| 6K+18K | 6K+6K+18K | 6K+6K+6K+6K | 6K+6K+6K+6K+6K | 6K+6K+6K+6K+6K+6K |
| 6K+24K | 6K+6K+24K | 6K+6K+6K+9K | 6K+6K+6K+6K+9K | 6K+6K+6K+6K+6K+9K |
| 6K+30K | 6K+6K+30K | 6K+6K+6K+12K | 6K+6K+6K+6K+12K | 6K+6K+6K+6K+6K+12K |
| 6K+36K | 6K+6K+36K | 6K+6K+6K+18K | 6K+6K+6K+6K+18K | 6K+6K+6K+6K+6K+18K |
| 9K+18K | 6K+9K+9K | 6K+6K+6K+24K | 6K+6K+6K+6K+24K | 6K+6K+6K+6K+6K+24K |
| 9K+24K | 6K+9K+12K | 6K+6K+9K+9K | 6K+6K+6K+9K+9K | 6K+6K+6K+6K+9K+9K |
| 9K+30K | 6K+9K+18K | 6K+6K+9K+12K | 6K+6K+6K+9K+12K | 6K+6K+6K+6K+9K+12K |
| 9K+36K | 6K+9K+24K | 6K+6K+9K+18K | 6K+6K+6K+9K+18K | 6K+6K+6K+6K+9K+18K |
| 12K+12K | 6K+9K+30K | 6K+6K+9K+24K | 6K+6K+6K+9K+24K | 6K+6K+6K+6K+9K+24K |
| 12K+18K | 6K+9K+36K | 6K+6K+12K+12K | 6K+6K+6K+12K+12K | 6K+6K+6K+6K+12K+12K |
| 12K+24K | 6K+12K+12K | 6K+6K+12K+18K | 6K+6K+6K+12K+18K | 6K+6K+6K+6K+12K+18K |
| 12K+30K | 6K+12K+18K | 6K+6K+12K+24K | 6K+6K+6K+12K+24K | 6K+6K+6K+6K+12K+24K |
| 12K+36K | 6K+12K+24K | 6K+6K+18K+18K | 6K+6K+6K+18K+18K | 6K+6K+6K+9K+9K+9K |
| 18K+18K | 6K+12K+30K | 6K+6K+18K+24K | 6K+6K+6K+18K+24K | 6K+6K+6K+9K+9K+12K |
| 18K+24K | 6K+12K+36K | 6K+9K+9K+9K | 6K+6K+9K+9K+9K | 6K+6K+6K+9K+9K+18K |
| 18K+30K | 6K+18K+18K | 6K+9K+9K+12K | 6K+6K+9K+9K+12K | 6K+6K+6K+9K+9K+24K |
| 18K+36K | 6K+18K+24K | 6K+9K+9K+18K | 6K+6K+9K+9K+18K | 6K+6K+6K+9K+12K+12K |
| 24K+24K | 6K+18K+30K | 6K+9K+9K+24K | 6K+6K+9K+9K+24K | 6K+6K+6K+9K+12K+18K |
| 24K+30K | 6K+18K+36K | 6K+9K+12K+12K | 6K+6K+9K+12K+12K | 6K+6K+6K+9K+12K+24K |
| 24K+36K | 9K+9K+9K | 6K+9K+12K+18K | 6K+6K+9K+12K+18K | 6K+6K+6K+12K+12K+12K |
| 9K+9K+12K | 6K+9K+12K+24K | 6K+6K+9K+12K+24K | 6K+6K+6K+12K+12K+18K | |
| 9K+9K+18K | 6K+9K+18K+18K | 6K+6K+9K+18K+18K | 6K+6K+6K+12K+12K+24K | |
| 9K+9K+24K | 6K+9K+18K+24K | 6K+6K+9K+18K+24K | 6K+6K+9K+9K+9K+9K | |
| 9K+9K+30K | 6K+12K+12K+12K | 6K+6K+12K+12K+12K | 6K+6K+9K+9K+9K+12K | |
| 9K+9K+36K | 6K+12K+12K+18K | 6K+6K+12K+12K+18K | 6K+6K+9K+9K+9K+18K | |
| 9K+12K+12K | 6K+12K+12K+24K | 6K+6K+12K+12K+24K | 6K+6K+9K+9K+9K+24K | |
| 9K+12K+18K | 6K+12K+18K+18K | 6K+6K+12K+18K+18K | 6K+6K+9K+9K+12K+12K | |
| 9K+12K+24K | 6K+12K+18K+24K | 6K+6K+12K+18K+24K | 6K+6K+9K+9K+12K+18K | |
| 9K+12K+30K | 6K+18K+18K+18K | 6K+6K+18K+18K+18K | 6K+6K+9K+9K+12K+24K | |
| 9K+12K+36K | 6K+18K+18K+24K | 6K+6K+18K+18K+24K | 6K+6K+9K+12K+12K+12K | |
| 9K+18K+18K | 9K+9K+9K+9K | 6K+9K+9K+9K+9K | 6K+6K+9K+12K+12K+18K | |
| 9K+18K+24K | 9K+9K+9K+12K | 6K+9K+9K+9K+12K | 6K+6K+9K+12K+12K+24K | |
| 9K+18K+30K | 9K+9K+9K+18K | 6K+9K+9K+9K+18K | 6K+6K+12K+12K+12K+12K | |
| 9K+18K+36K | 9K+9K+9K+24K | 6K+9K+9K+9K+24K | 6K+6K+12K+12K+12K+18K | |
| 12K+12K+12K | 9K+9K+12K+12K | 6K+9K+9K+12K+12K | 6K+6K+12K+12K+12K+24K | |
| 12K+12K+18K | 9K+9K+12K+18K | 6K+9K+9K+12K+18K | 6K+9K+9K+9K+9K+9K | |
| 12K+12K+24K | 9K+9K+12K+24K | 6K+9K+9K+12K+24K | 6K+9K+9K+9K+9K+12K | |
| 12K+12K+30K | 9K+9K+18K+18K | 6K+9K+9K+18K+18K | 6K+9K+9K+9K+9K+18K | |
| 12K+12K+36K | 9K+9K+18K+24K | 6K+9K+9K+18K+24K | 6K+9K+9K+9K+9K+24K | |
| 12K+18K+18K | 9K+12K+12K+12K | 6K+9K+12K+12K+12K | 6K+9K+9K+9K+12K+12K | |
| 12K+18K+24K | 9K+12K+12K+18K | 6K+9K+12K+12K+18K | 6K+9K+9K+9K+12K+18K | |
| 12K+18K+30K | 9K+12K+12K+24K | 6K+9K+12K+12K+24K | 6K+9K+9K+9K+12K+24K | |
| 12K+18K+36K | 9K+12K+18K+18K | 6K+9K+12K+18K+18K | 6K+9K+9K+12K+12K+12K | |
| 18K+18K+18K | 9K+12K+18K+24K | 6K+9K+12K+18K+24K | 6K+9K+9K+12K+12K+18K | |
| 9K+18K+18K+18K | 6K+9K+18K+18K+18K | 6K+9K+9K+12K+12K+24K | ||
| 12K+12K+12K+12K | 6K+12K+12K+12K+12K | 6K+9K+12K+12K+12K+12K | ||
| 12K+12K+12K+18K | 6K+12K+12K+12K+18K | 6K+9K+12K+12K+12K+18K | ||
| 12K+12K+12K+24K | 6K+12K+12K+12K+24K | 6K+12K+12K+12K+12K+12K | ||
| 12K+12K+18K+18K | 6K+12K+12K+18K+18K | 6K+12K+12K+12K+12K+18K | ||
| 12K+12K+18K+24K | 6K+12K+18K+18K+18K | 9K+9K+9K+9K+9K+9K | ||
| 12K+18K+18K+18K | 9K+9K+9K+9K+9K | 9K+9K+9K+9K+9K+12K | ||
| 9K+9K+9K+9K+12K | 9K+9K+9K+9K+9K+18K | |||
| 9K+9K+9K+9K+18K | 9K+9K+9K+9K+9K+24K | |||
| 9K+9K+9K+9K+24K | 9K+9K+9K+9K+12K+12K | |||
| 9K+9K+9K+12K+12K | 9K+9K+9K+9K+12K+18K | |||
| 9K+9K+9K+12K+18K | 9K+9K+9K+9K+12K+24K | |||
| 9K+9K+9K+12K+24K | 9K+9K+9K+12K+12K+12K | |||
| 9K+9K+9K+18K+18K | 9K+9K+9K+12K+12K+18K | |||
| 9K+9K+9K+18K+24K | 9K+9K+12K+12K+12K+12K | |||
| 9K+9K+12K+12K+12K | 9K+9K+12K+12K+12K+18K | |||
| 9K+9K+12K+12K+18K | 9K+12K+12K+12K+12K+12K | |||
| 9K+9K+12K+12K+24K | 12K+12K+12K+12K+12K+12K | |||
| 9K+9K+12K+18K+18K | ||||
| 9K+9K+12K+18K+24K | ||||
| 9K+9K+18K+18K+18K | ||||
| 9K+12K+12K+12K+12K | ||||
| 9K+12K+12K+12K+18K | ||||
| 9K+12K+12K+12K+24K | ||||
| 9K+12K+12K+18K+18K | ||||
| 12K+12K+12K+12K+12K | ||||
| 12K+12K+12K+12K+18K | ||||
| 12K+12K+12K+12K+24K | ||||
| 12K+12K+12K+18K+18K |
| *Note: Units marked in BOLD can be either a Multi-position Air Handler, or other Indoor unit TYPE |
6,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH06MASTWM-230VI | 33.74x9.09x11.81 |
| Astoria Pro (Up to 27.4 SEER2) | CH-PRO06MASTWM-230VI | 33.74x9.09x11.81 |
| Olivia (Up to 26 SEER2) | CH-R06MOLVWM-230VI | 28.70x7.87x11.50 |
|
Ceiling Cassettes |
SKU | Dimensions(WxDxH) |
| One-Way Cassette Dip Switch (Up to 24 SEER2) | CH-RSH06-12MCT1W | 50.31x13.19x8.98 |
| Other Units | SKU | Dimensions(WxDxH) |
| Slim Duct Dip Switch (Up to 21.4 SEER2) | CH-RS06-12MDT- MS | 27.56 x 19.92 x 7.87 |
9,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH09MASTWM-230VI | 33.74x9.09x11.81 |
| Astoria Pro (Up to 27.4 SEER2) | CH-PRO09MASTWM-230VI | 33.74x9.09x11.81 |
| Olivia (Up to 26 SEER2) | CH-R09MOLVWM-230VI | 31.57x7.87x11.61 |
| Olivia Midnight (Black Style, Up to 26 SEER2) | CH-RB09MOLVWM-230VI | 31.57x7.87x11.61 |
| Ceiling Cassettes | SKU | Dimensions(WxDxH) |
| One-Way Cassette Dip Switch (Up to 24 SEER2) | CH-RSH06-12MCT1W | 50.31x13.19x8.98 |
| Ceiling Cassette Pro (9K-12K dip switch, ref sensor & humidity sensor) (Up To 22.6 SEER2) | CH-RSH09-12MCT | 22.44x22.44x9.65 |
| Ceiling Cassette (without dip switch, without ref sensor & with humidity sensor) (Up To 22.6 SEER2) | CH-RH09MCT | 22.44x22.44x9.65 |
| Other Units | SKU | Dimensions(WxDxH) |
| Slim Duct/Concealed Duct Dip Switch (Up To 21.4 SEER2) | CH-RS06-12MDT- MS | 27.56 x 19.92 x 7.87 |
| Mini Floor Console (Up To 27.2 SEER2) | CH-RSH09MMC | 31.26x7.87x24.45 |
12,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH12MASTWM-230VI | 33.74x9.09x11.81 |
| Astoria Pro (Up to 27.4 SEER2) | CH-PRO12MASTWM-230VI | 33.74x9.09x11.81 |
| Olivia (Up to 26 SEER2) | CH-R12MOLVWM-230V | 31.57x7.87x11.61 |
| Olivia Midnight (Black Style, Up to 26 SEER2) | CH-RB12MOLVWM-230VI | 31.57x7.87x11.61 |
| Ceiling Cassettes | SKU | Dimensions(WxDxH) |
| One-Way Cassette Dip Switch (Up to 24 SEER2) | CH-RSH06-12MCT1W | 50.31x13.19x8.98 |
| Ceiling Cassette Pro (9K-12K dip switch, ref sensor & humidity sensor) (Up To 22.6 SEER2) | CH-RSH09-12MCT | 22.44x22.44x9.65 |
| Ceiling Cassette (without dip switch, without ref sensor & with humidity sensor) (Up To 22.6 SEER2) | CH-RH12MCT | 22.44x22.44x9.65 |
| Other Units | SKU | Dimensions(WxDxH) |
| Slim Duct/Concealed Duct Dip Switch (Up To 21.4 SEER2) | CH-RS06-12MDT- MS | 27.56 x 19.92 x 7.87 |
| Mini Floor Console (Up to 27.2 SEER2) | CH-RSH12MMC | 31.26x7.87x24.45 |
18,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH18MASTWM-230VI | 40.31x9.69x12.64 |
| Astoria Pro (Up to 27.4 SEER2) |
CH-PRO18MASTWM-230VI |
40.31x9.69x12.64 |
| Olivia (Up to 26 SEER2) | CH-R18MOLVWM-230VI | 42.60x9.21x13.27 |
| Olivia Midnight (Black Style, Up to 26 SEER2) | CH-RB18MOLVWM-230VI | 42.60x9.21x13.27 |
| Ceiling Cassettes | SKU | Dimensions(WxDxH) |
| One-Way Cassette (Up to 24 SEER2) | СH-RSH18MCT1W | 50.31x13.19x8.98 |
| Ceiling Cassette Pro (ref sensor & humidity sensor) (Up To 22.6 SEER2) | CH-RSH18MCT | 22.44x22.44x9.65 |
| Ceiling Cassette (without ref sensor & with humidity sensor) (Up To 22.6 SEER2) | CH-RH18MCT | 22.44x22.44x9.65 |
| Other Units | SKU | Dimensions(WxDxH) |
| Slim Duct/Concealed Duct (Up To 21.4 SEER2) | CH-RS18MDT-MS | 34.65 x 26.54 x 8.27 |
| Mini Floor Console 16k (Up to 27.2 SEER2) | CH-RSH16MMC | 31.26x7.87x24.45 |
| Universal Floor Ceiling (UP TO 23.3 SEER2) | CH-RSH18MFC | 42.05x26.57x9.25 |
| Multi-Position Air Handler (UP TO 19.7 SEER2) | CH-RS18MAHU | 17.52x21.02x45 |
24,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH24MASTWM-230VI | 47.13x11.02x14.61 |
| Astoria Pro (Up to 27.4 SEER2) |
CH-PRO24MASTWM-230VI |
47.13x11.02x14.61 |
| Olivia (Up to 26 SEER2) | CH-R24MOLVWM-230VI | 42.60x9.21x13.27 |
| Olivia Midnight (Black Style, Up to 26 SEER2) | CH-RB24MOLVWM-230VI | 42.60x9.21x13.27 |
| Ceiling Cassettes | SKU | Dimensions(WxDxH) |
| Ceiling Cassette Pro (ref sensor & humidity sensor) (Up To 22.6 SEER2) | CH-RSH24MCT | 32.68x32.68x8.07 |
| Ceiling Cassette (without ref sensor & with humidity sensor) (Up To 22.6 SEER2) | CH-RH24MCT | 32.68x32.68x8.07 |
| Other Units | SKU | Dimensions(WxDxH) |
| Slim Duct/Concealed Duct (Up To 21.4 SEER2) | CH-RS24MDT-HS | 39.37 x 29.53 x 9.65 |
| Universal Floor Ceiling (UP TO 23.3 SEER2) | CH-RSH24MFC | 42.05x26.57x9.25 |
| Multi-Position Air Handler (UP TO 19.7 SEER2) | CH-RS24MAHU | 17.52x21.02x 5 |
30,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 27.4 SEER2) | CH-RH30MASTWM-230VI | 47.13x11.02x14.61 |
| Astoria Pro (Up to 27.4 SEER2) | CH-PRO30MASTWM-230VI |
47.13x11.02x14.61 |
| Olivia (Up to 26 SEER2) | CH-R30MELVWM-230VI | 49.57x11.14x14.25 |
| Other Units | SKU | Dimensions(WxDxH) |
| Multi-Position Air Handler (UP TO 19.7 SEER2) | CH-RS30MAHU |
21.02x21.02x49.02 |
36,000 BTU Compatible Units
| Wall Mounts | SKU |
Dimensions(WxDxH) |
| Astoria (Up to 28.1 SEER2) | CH-RH36MASTWM-230VI | 47.13x11.02x14.61 |
| Astoria Pro (Up to 27.4 SEER2) |
CH-PRO36MASTWM-230VI |
47.13x11.02x14.61 |
| Olivia (Up to 26 SEER2) | CH-R36MELVWM-230VI | 49.57x11.14x14.25 |
Sizing and Compatibility:
Combination Chart
The capacity and number of systems can vary for each outdoor unit. Consult the combination chart for potential loading configurations. Ensure the total capacity of all connected indoor units aligns with the minimum and maximum loading range of the selected outdoor unit. It is not mandatory to utilize all circuits on an outdoor unit; some circuits may remain sealed without an attached indoor unit.
Warranty
- 7 year compressor limited warranty
- 5 year parts limited warranty (must be installed by a licensed HVAC technician)
- 1 year remote control
Technical Information
Model Number: CH-R48MES-230VO
| Outdoor Model | CH-R48MES-230VO |
| Power Supply | |
| Rated (V, Ph, Hz) | 208/230, 1, 60 |
| Voltage Range (V) | 187-253 |
| Cooling | |
| Rated Capacity (range) (Btu/h) | 12,000~55,000 |
| Rated Current (A) | 16.6 |
| EER2 (Btu/h/W) | 12.5 |
| SEER2 | 24 |
| Heating at 47°F | |
| Rated Capacity (range) (Btu/h) | 13,000~53,000 |
| Rated Current (A) | 16.3 |
| COP (W/W) | 3.8 |
| HSPF4 | 10.3 |
| HSPF5 | 8 |
| Heating at 5°F | |
| Rated Capacity (Btu/h) | 36,000 |
| Minimum Circuit Ampacity (Outdoor unit) (A) | 40 |
| Max. Fuse (Outdoor unit) (A) | 45 |
| Outdoor Air Flow (Max) (CFM) | 4,502.8 |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 63 |
| Dimension (W×D×H) (inch) | 37.48x16.34x52.48 |
| Packing (W×D×H) (inch) | 43.11x19.49x58.27 |
| Net/Gross Weight (lbs) | 222.00/254.19 |
| Refrigerant Type/Charged (oz) | R454B/61.73 |
| Refrigerant Precharge (ft) | 150 |
| Additional Charge for Each (oz/ft) | 0.16 |
| Design Pressure (PSIG) | 550/340 |
| Refrigerant Piping | |
| Liquid Side (inch) | 6 x 1/4” |
| Gas Side (inch) | 4 x 3/8” + 2 x 1/2” |
| Max. Pipe Length (ft) | 262.4 |
| Max. Length for One Indoor Unit (ft) | 114.8 |
| Max. Height Difference in Level (ft) | 49.2 |
| Max. Height Difference Between Indoor Units (ft) | 33 |
| Ambient Temperature | |
| Cooling (°F) | -13~122 |
| Heating (°F) | -13~75 |
| Certification | |
| AHRI | ✓ |
| Energy Star for Cold Climate | ✓ |
| NEEP | ✓ |
| ETL | ✓ |
