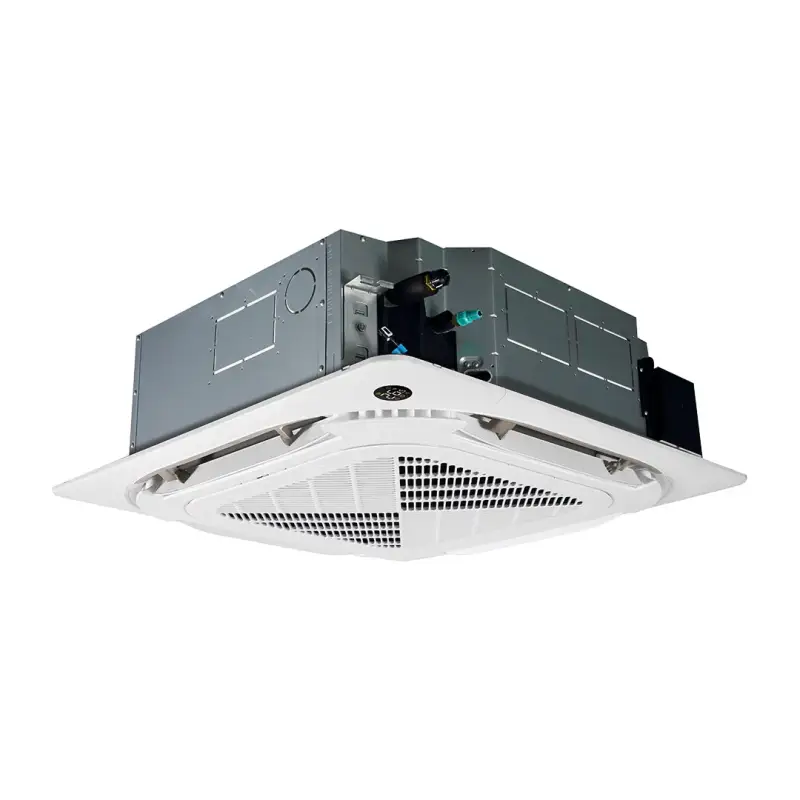

Cooper & Hunter Hyper Heat 9,000 BTU Indoor Ceiling Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump

Summary

Aesthetic Design Meets High Performance
Cooper & Hunter’s Ceiling Cassette Series offers a modern and discreet climate control solution, ideal for homes, offices, and commercial spaces. Designed to fit standard ceiling grids, these units deliver powerful airflow and seamless integration into your space.

Key Features:

Key Features & Performance Highlights

• ✔ 360° Omnidirectional Airflow for balanced room comfort

• ✔ R-454B Refrigerant – Eco-friendly and regulation-compliant

• ✔ Smart HVAC Ready – Built-in Wi-Fi Smart Kit + C&H mobile app

• ✔ Remote Control Included with optional wall thermostat compatibility

• ✔ High-Efficiency Inverter Technology – Up to 22.6 SEER2

• ✔ Cold Climate Heating – Effective down to -13°F (Standard) or -22°F (Hyper Heat)

• ✔ Available Capacities: 9K, 12K, 18K, 24K, 36K, 48K BTU/h

• ✔ Flexible Configurations – Single-Zone & Light Commercial applications

Additional Features:

• Louver Memory

• Auto Swing & Automatic Operation

• Self-Diagnosis & Intelligent Pre-Heating

• GoldFin Anti-Corrosion Coating

• Multiple Fan Speeds & Turbo Mode

• Sleep Mode & 24-Hour Timer

• Auto-Restart Function

• "Follow Me" Mode for precise comfort

Ideal For:

• Homes, Offices, Retail Stores, Studios, Commercial Installations

What's Included:

• ✅ Indoor Ceiling Cassette Unit

• ✅ Decorative Panel

• ✅ Remote Control

• ✅Wi-Fi Enabled Thermostat

• ✅ Installation & User Manual

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.

Compatible Outdoor Units – R-454B Models

Standard Outdoor Units (R-454B Refrigerant)

Hyper Heat Outdoor Units (R-454B Refrigerant – Cold Climate Models - Compatible with Dip switch, and Shut-Off Valve Hyper Outdoor Units )

Sizing and Compatibility:

Combination Chart

The capacity and number of systems can vary for each outdoor unit. Consult the combination chart for potential loading configurations. Ensure the total capacity of all connected indoor units aligns with the minimum and maximum loading range of the selected outdoor unit. It is not mandatory to utilize all circuits on an outdoor unit; some circuits may remain sealed without an attached indoor unit.

Warranty

• 7 year compressor limited warranty

• 5 year parts limited warranty (must be installed by a licensed HVAC technician)

• 1 year remote control

Technical Information

Model Number: CH-RH09MCT

Power Supply	Rated	V, Ph, Hz	208/230,1, 60
	Voltage Range	V	187-253
Cooling	Rated Capacity (Range)	Btu/h	3,700~13,600
	Rated Current	A	4.8
	EER2	Btu/h	14
	SEER2	Btu/h	22.6
Heating at 47°F	Rated Capacity (Range)	Btu/h	5,100~15,700
	Rated Current	A	3.3
	COP	W/W	4
	HSPF4		12.1
	HSPF5		9.3
Minimum Circuit Ampacity (MCA)		A	15
Max. Fuse (Outdoor Unit)		A	15
Outdoor Air Flow (Max.)		CFM	1471.5
Outdoor Noise Level (Sound Pressure)		dB(A)	55
Dimension (W×D×H)		inch	31.69x12.99x21.81
Packing (W×D×H)		inch	36.02x14.57x24.21
Net/Gross Weight		lbs.	72.75/78.70
Refrigerant Type / Charge		oz.	R454B/35.27
Refrigerant Precharge Length		ft.	25
Additional Charge for Each ft.		oz/ft	0.16
Design Pressure		PSIG	550/340
Refrigerant Piping Liquid Side/Gas Side		inch	1/4"/3/8"
Max. Pipe Length		ft.	82
Max. Difference in Level		ft.	49.2
Ambient Temperature	Cooling	°F	-22~122
	Heating	°F	-22~75
Certifications	ETL		TRUE
	AHRI		TRUE
	Energy Star for Cold Climate		TRUE
	NEEP		TRUE

Certifications
